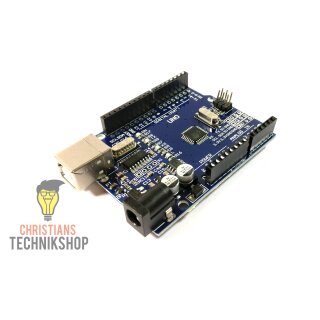

UNO R3 | developer board for Arduino IDE | ATMEL ATmega328P AVR Microcontroller | CH340-Chip | Christians Technikshop

Item number: 84

EAN: 4251346438712

The UNO Board is the perfect microcontroller for those who want to enter the programming world easy and straightforward. Its ATMega328-Microcontroller offers you enough efficiency for your ideas and projects. It is 68 x 53 mm large and has with 14 digital in- and outputs and 6 analog inputs many connection options.

Category: Boards

8,47 €

including 19% VAT. (Groß)

Available now!

Shipping time: 1 - 2 workdays

The UNO Board has one USB-Type-B-Port, so that you can supply it fast and simple with programmes - ofcourse through the well-known programming environment Arduino IDE. Plug-in system and circuit can be supplied via the USB-Port as well as through an own power connection.

Technical Data:

Microcontroller ATmega328P
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (ATmega328P) of which 0,5 KB used by bootloader
SRAM 2 KB (ATmega328P)
EEPROM 1 KB (ATmega328P)
Clock Speed 16 MHz
Length 68,6 mm
Width 53,4 mm

Marke: Christian's Technik Shop
Herstellernummer: Nicht zutreffend
Mikrocontroller: ATmega328P
Operating Voltage: 5V
Product weight: 0,03 Kg
