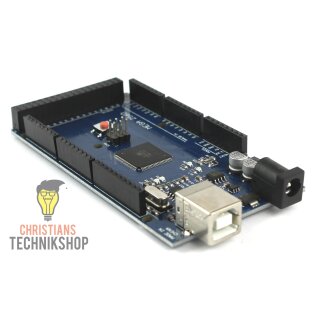

The MEGA 256 Board is the perfect microcontroller for those who want to enter the programming world easy and straightforward. Its ATMega2560-Microcontroller offers you enough efficiency for your ideas and projects. It is 110 x 53 mm large and has with 54 digital in- and outputs and 16 analogue inputs many connection options.
The MEGA2560 Board has a USB-Type-B-Port, so that you can supply it fast and simple with programmes - ofcourse through the well-known Arduino programming environment Arduino IDE. Plug-in system and circuit can be supplied via the USB-Port or alternatively over an own power connection.
Technical Data:
The MEGA2560 Board has a USB-Type-B-Port, so that you can supply it fast and simple with programmes - ofcourse through the well-known Arduino programming environment Arduino IDE. Plug-in system and circuit can be supplied via the USB-Port or alternatively over an own power connection.
Technical Data:
Microcontroller
ATmega2560
Operating Voltage
5V
Input Voltage (recommended)
7-12V
Input Voltage (limit)
6-20V
Digital I/O Pins
54 (of which 15 provide PWM output)
Analog Input Pins
16
DC Current per I/O Pin
20 mA
DC Current for 3.3V Pin
50 mA
Flash Memory
256 KB of which 8 KB used by bootloader
SRAM
8 KB
EEPROM
4 KB
Clock Speed
16 MHz
Length
101.52 mm
Width
53.3 mm
Weight
37 g
| Marke: | Christian's Technik Shop |
| Herstellernummer: | Nicht zutreffend |
| Mikrocontroller: | ATmega2560 |
| Operating Voltage: | 5V |
| Product weight: | 0,03 Kg |
