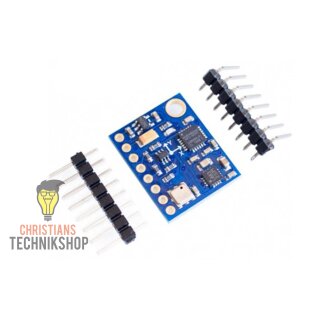

GY-87 10DOF MPU6050 HMC5883L BMP180 Triaxial-Gyroscope, triaxial Accelerometer, Triaxial-Magnetic-Field, Atmospheric Pressure

Item number: 100452

EAN: 4251346438705

Category: Distance & Pitch

11,77 €

including 19% VAT. (Kompakt)

Available now!

Shipping time: 1 - 2 workdays

The GY-87  Module is a small board that combines a triaxial gyroscope, a triaxial accelerometer, a triaxial magnetic field and barometer. On the  board ia also a filter, which reduces the noises of the motor. It is used for GPS-navigaiton, free fall detection,  FPV, RC and robotsystems.

Technical Data

Model: 10DOF
Chip: MPU6050 + HMC5883L + BMP180
Current Supply: 3-5 V
Communication: Standard I²C-interface  (compatible with 3-5 V System)
Size: 22 mm * 17 mm (L*W)
16-Bit-AD-Changer, 16 Bit bandwith
Immersion Gold PCB Technology
Dynamik of the Gyroscope: + 250, 500, 1000, 2000 °/s
Dynamik of the Accelerometer: 2g, 4g,  8g, 16g
Pin Allocation: VCC, GND, SCL, SDA, XDA, XCL, ADO, INT
Pitch: 2,54 mm
Weight: 6 g
