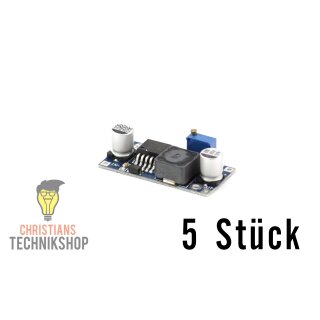

5 pieces DC-DC Transformer LM2596S step-down Module 3A input 3,2-40 V

Item number: 121

Category: Supply


5,45 €

including 16% VAT. (Groß)

Not available now!


5 Direct-Current-Voltage-Transformer in a bundle - save with the purchase of a package!

This Direct-Current-Voltage-Transformer can reduce input voltages in a range of 3.2 to 40 Volt to output voltages between 1.25 and 35 Volt and is therefore a so called "step down"-voltage-transformer. Through a potentiometer it is possible to adjust the output voltage easily.

For currents over 1 A and an input voltage over 12 V the module should be cooled.

Technical Data:

Input Voltage 3.2 - 40 V
Output Voltage 1.25 - 35 V
Current (Max) 3 A
Efficiency 92 % (Max)
Switch Frequency 65 kHz
Temperature Range -45°C - 85°C
Size 43 mm x 21 mm x 14 mm


Marke: Christian's Technik Shop
Herstellernummer: Nicht zutreffend
Product weight: 0,06 Kg
